• What are the core technical parameters to evaluate when selecting a press brake?

  Selecting the right press brake goes beyond just looking at the basic pressure. To ensure the machine meets your production needs and maintains long-term precision, you must conduct a deep technical analysis across four key dimensions:

  • Core Mechanical Parameters (Addressing “Can it bend?”): Focus on comparing Tonnage and Bending Length. You must calculate the required pressure based on the material type, thickness, and V-opening width. We recommend maintaining a 20% safety margin to protect the machine and tooling.

  • Spatial Constraint Parameters (Addressing “Can the part be removed?”): Focus on comparing Open Height , Throat Depth, and Stroke. These parameters determine whether you can bend large side panels and if deep box-shaped workpieces can be successfully removed after bending.

  • Precision & Compensation Parameters (Addressing “Is the bend accurate?”): Focus on comparing the number of CNC Axes and the Crowning System. Multi-axis linkage (such as 4+1 or 6+1 axes) and automatic compensation systems are critical for ensuring angle consistency across the entire length of the workpiece.

  • Interface & Tooling Standards (Addressing “Compatibility”): Focus on the Tooling Clamping Method and Tooling Material. Choosing universal Amada/Promecam interfaces and high-strength tooling (such as 42CrMo) can effectively reduce future tool replacement costs and maintenance frequency.



• How do I calculate the required tonnage for my bending project?

   Tonnage depends on material thickness, tensile strength, and V-opening width.

  Click here to check the detail

• What is the difference between a CNC and an NC hydraulic press brake?

  The main difference lies in automation and precision. A CNC press brake (equipped with controllers like Delem DA53T or DA66T) automatically calculates the bending depth and backgauge position, making it ideal for complex, multi-bend parts. An NC press brake uses a simpler controller (like E21) for basic, repetitive tasks. CNC machines significantly reduce setup time and operator error.

• When should I consider a Tandem Press Brake system over a single large machine?

  A Tandem Press Brake system consists of two machines synchronized to work as one, providing a strategic solution for heavy-duty and extra-long metal fabrication. You should consider this system if your production requires:

  • Extra-Long Workpiece Processing: Tandem systems are the industry standard for manufacturing poles (like lighting or power poles), truck frames, and large construction components that exceed the length capacity of a standard single press brake.

  • Operational Flexibility: Unlike a single large machine, a tandem setup allows you to operate the units independently for smaller parts or synchronized for long parts, significantly increasing your workshop’s machine utilization and ROI.

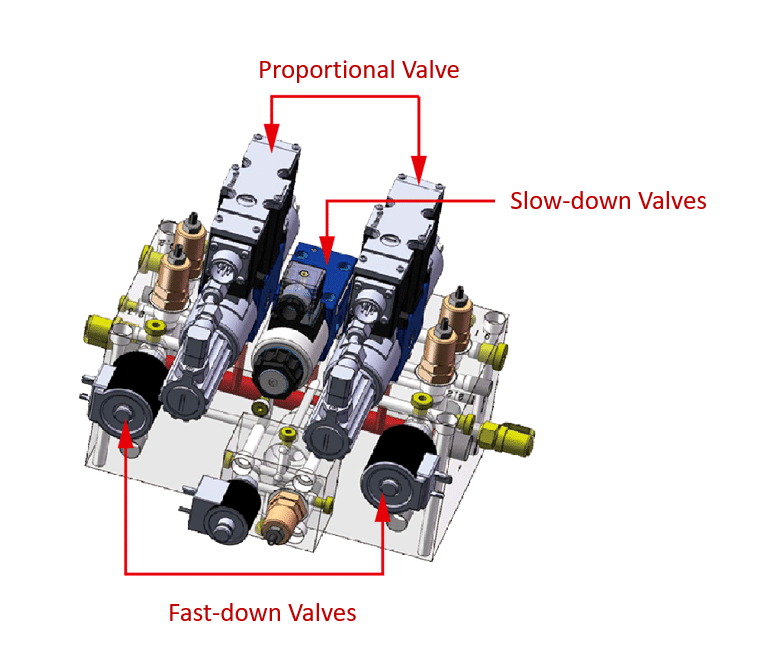

  • High Precision Synchronization: Modern tandem systems utilize advanced CNC controllers (such as Delem) and high-speed proportional valves to ensure the two rams move with millisecond-level synchronization, maintaining perfect bending angles across the entire combined length.

  • Cost-Effectiveness in Logistics: It is often easier and more cost-effective to transport and install two medium-sized machines than one massive, oversized single-frame press brake.

  [Technical Deep Dive]: For a detailed look at the synchronization technology, mechanical coupling, and specific applications of dual-machine setups, read our Tandem Press Brake Machine Technical Guide.

• How many axes do I need for my CNC press brake (4-axis vs. 6-axis)?

  The number of controlled axes (Y, X, R, Z, V) determines the machine’s automation level and its ability to handle complex shapes. Choosing the right configuration is essential for balancing cost and production efficiency:

  • 3+1 Axis (Y1, Y2, X + V-axis): The standard configuration for simple, uniform bending. It controls the ram depth (Y) and backgauge distance (X), with automatic crowning (V) to ensure angle consistency.

  • 4+1 Axis (Y1, Y2, X, R + V-axis): Adds the R-axis, which controls the vertical height of the backgauge fingers. This is essential if your workpieces have varying flange heights or require multi-step bending.

  • 6+1 Axis (Y1, Y2, X, R, Z1, Z2 + V-axis): Adds the Z-axis, allowing the backgauge fingers to move laterally (left/right) independently. This is the best choice for asymmetrical parts, complex multi-bend sequences, and significantly reducing setup time for different widths.

  • V-Axis (CNC Crowning): At Meca, this is standard on all CNC models. It automatically compensates for machine deflection, ensuring perfect precision on long or thick plates.

  [Technical Comparison]: For a detailed breakdown of how each axis affects your bending precision and to see which configuration fits your parts, read our Full Guide to CNC Press Brake Axis Configurations.

• How does the crowning system improve bending accuracy on long workpieces?

  When bending long sheets, the machine frame can deflect, causing the middle angle to be wider than the ends. Our mechanical or hydraulic crowning system compensates for this deflection in real-time. Combined with high-precision linear scales, it ensures a consistent bending angle across the entire length of the machine.

• Why is a Servo-Driven Press Brake more expensive than a traditional Induction Motor machine?

  The higher upfront cost of a Servo-driven or Hybrid system reflects a fundamental upgrade in technology, components, and long-term operational value. Here is where the extra investment goes:

  • High-Cost Precision Components: Servo systems require specialized high-torque motors and advanced drive controllers (like Delem or ESA) to manage synchronized movement. These components are significantly more expensive than standard industrial induction motors.

  • Superior Speed & Productivity: A servo motor can accelerate and decelerate the ram almost instantly. This reduces “idle time” during the approach and return strokes, increasing your daily output by 20-30% compared to traditional machines.

  • Enhanced Thermal Stability & Accuracy: Traditional motors run 100% of the time, heating up the hydraulic oil. Heat causes the oil to thin, leading to “angle drift” throughout the day. Servo motors only run when bending, keeping the oil cool and ensuring the first bend is as accurate as the last.

  • Maintenance & Energy Savings: By eliminating continuous idling and reducing oil temperature, the lifespan of hydraulic seals and valves is doubled. Combined with 50% lower electricity bills, the machine often pays for the price difference within 2-3 years.

  Summary: You are not just paying for a motor; you are paying for higher output per hour, zero angle fluctuations due to heat, and a massive reduction in long-term energy and maintenance costs.

  [Full Economic Analysis]: Learn more about the ROI and technical advantages in our detailed comparison: Servo Motor vs. Induction Motor: Is the Upgrade Worth It?.
